High Speed Building Wire Extruder Machine
Building Wire Sheath Line, Building Wire Insulation Line, House Wire Extruder Machine, PVC Coating Line, Automotive Wire Extrusion line

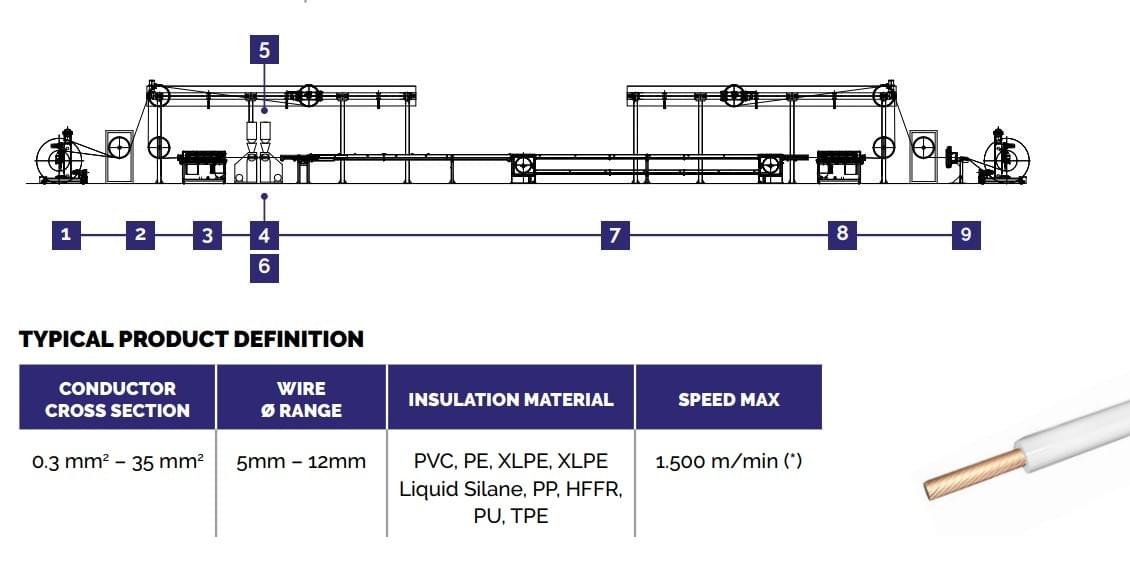

Building wire Insulation Lines
For insulation of low-voltage wire with mulitple thermoplastic materials including flame retardants,
reticulated polyethylene (XLPE), also with liquid Silane, halogen-free (HFFR), PP, PU, TPE and PVC.
Multiple line configurations guarantee efficient production with high speeds and low scrap.
LINE TYPES:
• Single extruder – insulation.
• Coex 2: insulation extruder and stripe extruder.
• Coex 3: insulation extruder, outer skin, inner skin – with Quick Color Change functionality.
X-Flow quick color change system ensures color change without slowing down the line with minimum scrap.
Building Wire Insulation Line
Main Models of Building Wire Insulation Line

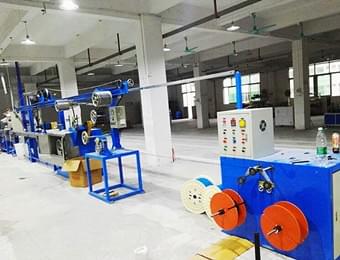

SJ50/25 Cable Insulation MachineInput wire diamete:0.4-7.0mm.
Screw rod speed:110rpm.
Line speed: 260m/min.
Extruding capacity: 70kg/h.
Total Power: 30kw.

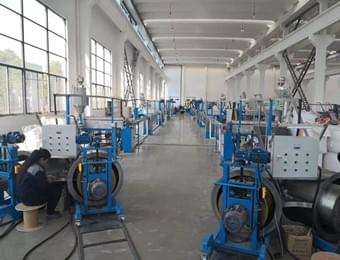

SJ50+35 High Speed Insulation LineInput wire diameter:0.5-10.0mm.
Screw rod speed: 90rpm.
Line speed: 500m/min.
Extruding capacity: 80kg/h.
Auxiliary extruder: 35/20.

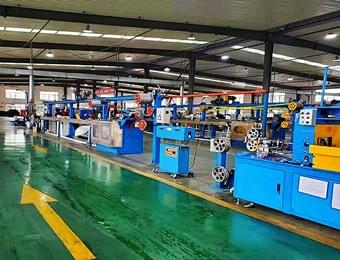

SJ70+35 High Speed Cable Extruder with automatic coiling machineInput wire diamete:0.5-10.0mm.
Screw rod speed: 90rpm.
Line speed: 350m/min.
Extruding capacity: 130kg/h.
Auxiliary extruder: 35/20.

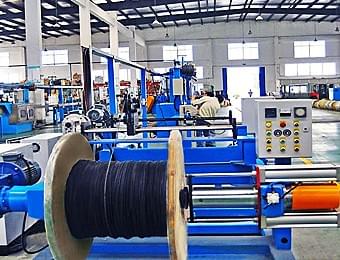

SJ80+45 Cable ExtrudingLine
Input wire diameter: 2.0-15.0mm.
Screw rod speed: 110rpm.
Line speed: 300m/min.
Extruding capacity: 200kg/h.
Total Power: 75KW

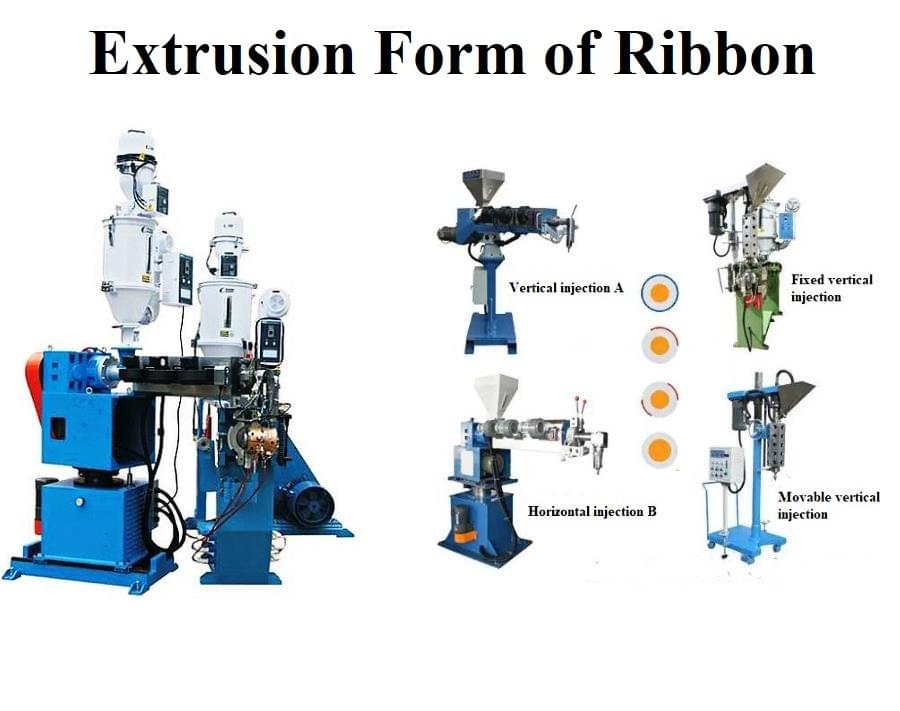

Ribbon Extruding Machine (also calls Color strip injection machine ) for Cable and Wire
Vertical injection machine:
This machine is a small extruder, which can be connected with the extrusion production line to inject another color. There are four wheels for flexible movement from one place to another. The height of the crosshead is approximately 990mm to 1120mm.
Horizontal injection machine:
Horizontal color injection machine: With advanced machine structure and electrical control, it is suitable for extruding different kinds of wires, and can be connected to 50, 60, 70, 80, 90, 120 double-color cross-head extrusion double-color cables.

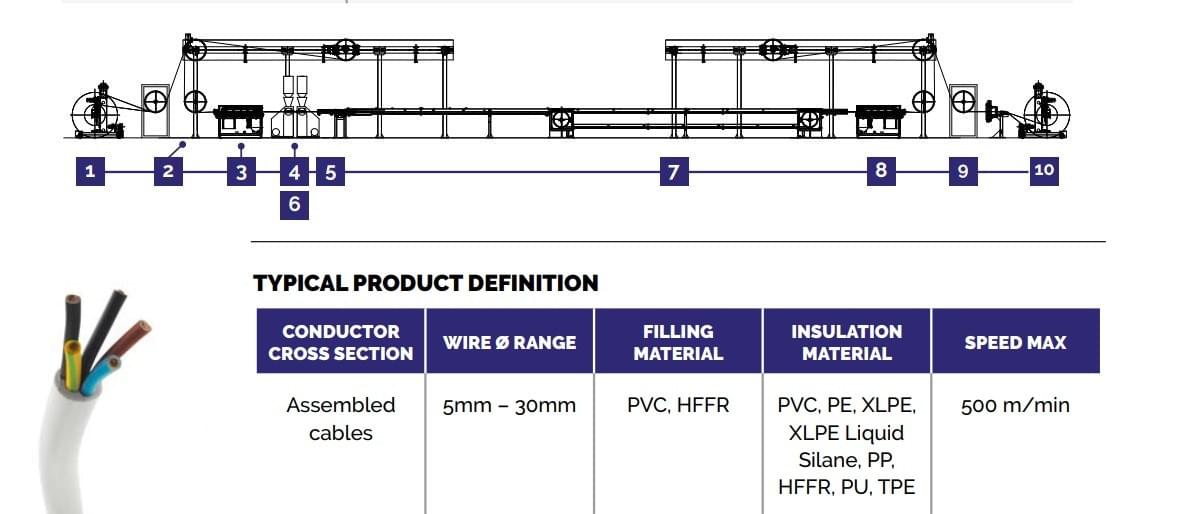

Building wire sheathing Lines
For sheating of low-voltage cables with different thermoplastic materials including flame retardants, reticulated polyethylene (XLPE) including liquid Silane, halogen-free (HFFR), PVC, PP, PU, TPE.
Multiple line configurations guarantee efficient production with high speeds and low scrap.LINE TYPES:
Single extruder – sheating• Coex 2: Filling Extruder, Sheating Extruder
• Coex 3: Filling Extruder, Sheating Extruder, skin extruder
• Tandem: Filling group Single Extruder – Sheating Group Single ExtruderBuilding Wire Sheathing Jacket Line
Main Models of Building Wire Sheathing Jacket Line

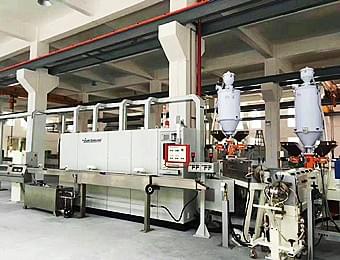

SJ80+45 Cable ExtrudingLineInput wire diameter: 0.5-10.0mm.
Screw rod speed: 90rpm/40rpm.
Line speed: 350m/min.
Extruding capacity: 280kg/h.
Total Power: 45KW

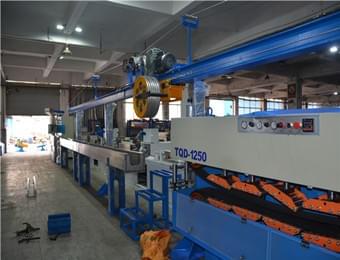

SJ90+50 Cable ExtrudingLineInput wire diameter: 3.0-45.0mm.
Screw rod speed: 80rpm/110rpm.
Line speed: 300m/min.
Extruding capacity: 300kg/h/50kg/h.
Total Power: 55KW

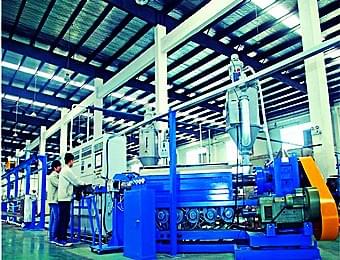

SJ100+70 Cable Jacket Extrusion MachineInput wire diamete:5.0-50.0mm.
Screw rod speed: 90rpm/70rpm.
Line speed: 60m/min.
Extruding capacity: 350kg/h/150kg/h.
10kv silane crosslinked cables and overhead cables

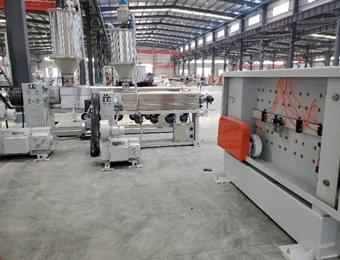

SJ120+80 Co-Extrusion MachineInput wire diameter5.0-90.0mm.
Screw rod speed: 90rpm/70rpm.
Line speed: 60m/min.
Extruding capacity: 350kg/h/150kg/h.
Total power: 183kw
Building wire sheating Lines with S-Z Stranding
With our building wire SZ Strander ESZ, the core assembly is combined with filling and sheathing lines to guarantee continuous production with materials including flame retardants, halogen-free (HFFR), PVC, PE and EPDM (for filling).
LINE TYPES:
Coex 2: Filling Extruder, Sheating Extruder
• Coex 3: Filling Extruder, Sheating Extruder, Skin Extruder
• Tandem: Filling/Sheating group Coex 2 – Skin Group Single Extrude

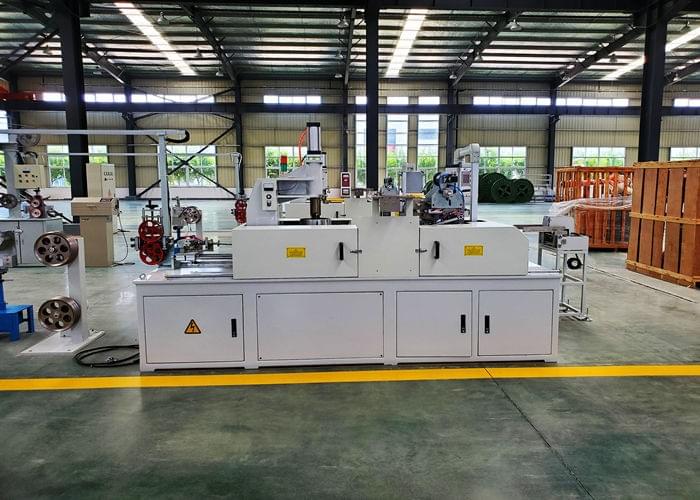

VC1040 Automatic PLC Coiling and Packing Integrated Machine
Coiling head performance:- Applicable line type: Φ3- 8mm wire (bv1.5-6) mm²， BVR2. 5—10mm²）
- Design speed of coiling head: 900 RPM max
- Coil size: outer diameter Φ 400mmmax * height 40-100mm;
Packing machine performance::- Weight of packaged coil: max 35kg.
- Size of PVC / PE / PP adhesive film: 0.05mm-0.07mm thick*40mm-50mm width
- It can be supplied by the paying off machine or directly connected to the production line of the extruder.
- The microcomputer memory can store 99 different coil specifications. .
- The secondary machine has the function of automatic error detection.
